商品の詳細:
お支払配送条件:
|
| 製品名: | 電気自動車用の高温抵抗絶縁体および耐衝撃性シリコーン発泡材料 | 色: | グレー |
|---|---|---|---|
| 密度(g/cm3): | 0.37 | キーワード: | シリコーン発泡 |
| 100℃における圧縮永久歪み(%): | ＜5.0 | 構造とコンポーネント: | シリコーンゴム |
| 引張強度（MPA）: | ≥0.3 | 応用: | 電気自動車 |

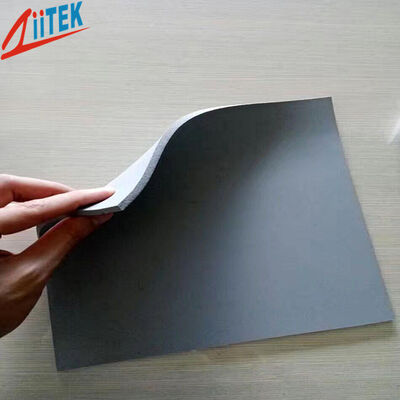

High Temperature Resistance Insulation And Shock Resistance Silicone Foaming Material For Electric Vehicle
Z-Foam®800-10SC series foamed silicone is a foam material formed by the foaming of poly siloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weather ability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance, creep resistance, flame retardancy, and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing, vibration damping, cushioning, sound insulation.
Features
> Resistant to mechanical fatigue
> Resistant to ozone and ultraviolet rays
> High oxygen index, low smoke,low toxicity
> Excellent performance under extreme temperatures
> Excellent resistance to compression set and creep
Application
> Communication Equipment
> Smart Devices
> Cables and Optical Fibers
> Airplanes, High-Speed Trains,Automobiles
> Telecommunication and Electrical Cabinets
| Typical Properties of Z-Foam®800-10SC Series | ||
| Properties | Value | Test method |
| Color | Gray | Visual |
| Structure & Component | Silicone rubber | ****** |
| Density (g/cm3) | 0.37 | ASTM D1056 |
| Compression Set @100℃(%)) | ＜5.0 | ASTM D1056 |
| Tensile Strength (MPa) | ≥0.3 | ASTM D412 |
| Elongation At Break (%) | ≥90 | ASTM D570 |
| Water Absorption (%) | ≤5.0 | ASTM D412 |
| Breakdown Voltage (kV/mm) | ≥2.5 | ASTM D149 |
| Volume Resistivity (Ω·cm) | ≥1.0 x 1014 | ASTM D257 |
| Temperature Range (℃)) | -55~200 | ****** |
| Flame Rating | V-0 | UL94 (E331100) |
Standard Sheet Size:23" x 60"(584mm x 1524mm)
Z-Foam® Series can be die-cut into different shapes provided.
For More different thickness,please contact us.
Company profile
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
コンタクトパーソン: Dana Dai
電話番号: 18153789196
