商品の詳細:
|
| 製品名: | 電気自動車バッテリー用のソフト 1.8W/mK 熱伝導率ギャップフィラー | 建設と合成: | セラミック充填シリコーンエラストマー |
|---|---|---|---|
| キーワード: | サーマルギャップフィラー | 硬度: | 65/27 ショア00 |
| 熱伝導率: | 1.8 W/m-K | サンプル: | 無料 |
| 厚さ: | 利用できるThicknesを変える | 密度: | 2.2g/cm3 |
| 応用: | 電気自動車のバッテリー |

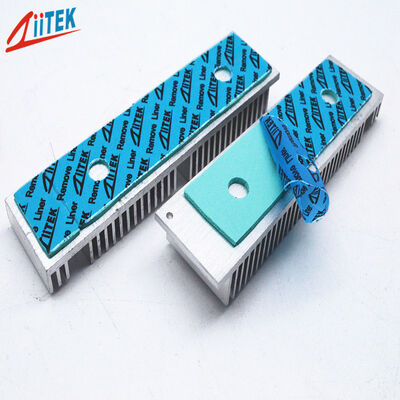

Soft 1.8W/mK Thermal Conductivity Gap Filler For Electric Vehicle Batteries
Products description
The TIF®TIF100-18-56U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.
Features:
> Good thermal conductivity :1.8W/mK
> Ultra-soft and highly conformable
> Self-adhesive without the need for additional surface adhesive
> Good insulation performance
Applications:
> Home applince industry
> Power module
> Wearable device
> Solar photovoltaic panel
> LED lighting fixtures
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
> LED Power Supply
| Typical Properties of TIF®100-18-56U Series | |||
| Property | Value | Test method | |
| Color | Green | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 1.8 W/m-K | ASTM D5470 | |
| 1.8 W/m-K | ISO22007 | ||
Products specification
Standard Thickness: 0.010"(0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size:16"×16" (406 mm×406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Company Profile
Ziitek Technology CO.,Ltd is a professional manufacturer of thermal interface materials with 20 years of industry experience. Integrating R&D, production, sales, and technical services, the company offers a comprehensive product line covering thermally conductive silicone pads, thermal conductive grease/paste,thermally conductive graphite sheets, phase change materials, thermally conductive plastics, thermal gel , silicone foam, silicone-free thermal pads etc.We adhere to strict quality standards and provide customized solutions based on customer requirements. Our products are widely used in electronics, new energy, telecommunications, industrial control, and other fields, earning the trust of customers both domestically and internationally through our proven capabilities.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
