商品の詳細:
|
| 製品名: | 電気自動車のバッテリーのための 1.5WmK の熱伝導率を備えた熱伝導性パッドの柔らかく非常に適合性の高い材料 | 建設と合成: | セラミック充填シリコーンエラストマー |
|---|---|---|---|
| キーワード: | サーマルギャップフィラー | 硬度: | 20海岸00 |
| 熱伝導率: | 1.5W/mK | サンプル: | 無料 |
| 厚さ: | 利用できるThicknesを変える | 密度: | 2.2g/cm3 |
| 応用: | 電気自動車のバッテリー |

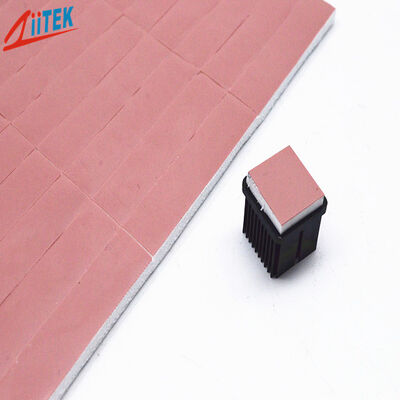

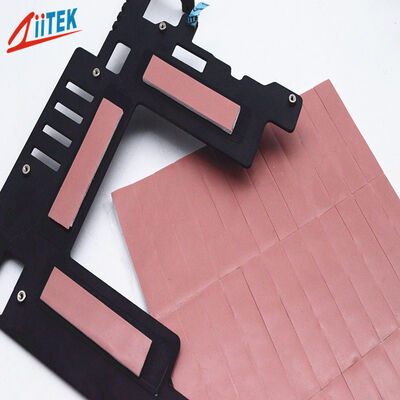

Standard Thickness: 0.010" (0.25 mm) ~ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm) Standard Size: 16" × 16" (406 mm × 406 mm) Component Codes: Reinforcement Fabric: FG (Fiberglass) Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening) Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive) The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.Thermal Conductive Pad Soft Highly Conformable Material With 1.5WmK Thermal Conductivity For Electric Vehicle Batteries
The TIF® 200-02US Series is a compound thermal interface material that combines good thermal conductivity, reliable electrical insulation, and soft characteristics. This product not only provides excellent thermal conductivity but also ensures superior breakdown voltage strength, effectively preventing circuit short circuits. Its soft characteristic allows it to fully fill uneven interfaces, providing excellent cushioning protection for precision components while dissipating heat. This series is an ideal choice for applications requiring electrical isolation, such as power devices, new energy vehicles, and portable electronic devices.
Key Features
Applications
Typical Properties of TIF® 200-02US Series
Property
Value
Test Method
Color
Pink/White
Visual
Construction & Composition
Ceramic filled silicone elastomer
******
Density (g/cm³)
2.2
ASTM D792
Thickness Range (inch/mm)
0.010~0.020 | 0.030~0.200
(0.25~0.50) | (0.75~5.00)ASTM D374
Hardness
20 Shore 00
ASTM 2240
Recommended Operating Temperature
-40 to 200℃
******
Breakdown Voltage (V/mm)
≥5500
ASTM D149
Dielectric Constant
4.0 MHz
ASTM D150
Volume Resistivity
＞1.0×10¹² Ohm-meter
ASTM D257
Flame rating
V-0
UL 94 (E331100)
Thermal conductivity
1.5 W/m-K
1.5 W/m-KASTM D5470
ISO22007Product Specifications
Company Profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). We have rich experiences in this field which can support you with the latest, most effective and one-step thermal management solutions. We have many advanced production equipment, full test equipment and fully automatic coating production lines which can support the production of high performance thermal silicone pad, thermal graphite sheet/film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock, or 7-10 work days if the goods are not in stock, depending on quantity.
Q: Do you provide samples? Is it free or extra cost?
A: Yes, we could offer samples free of charge.
