商品の詳細:
|

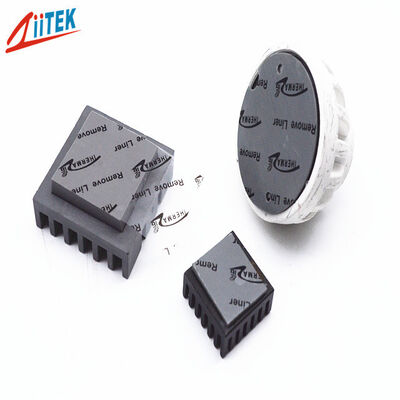

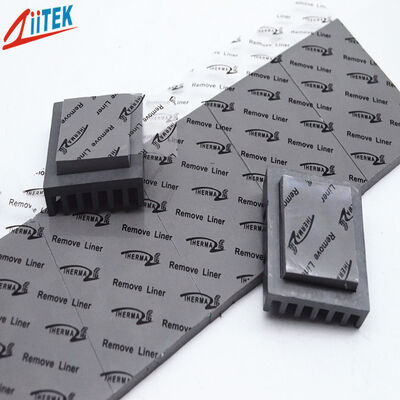

| 製品名: | RoHS準拠のカスタムの厚さと形状の新しいエネルギー充電ボックス用の非常に柔らかいサーマルパッド | 厚さ: | 利用できるThicknesを変える |
|---|---|---|---|
| キーワード: | サーマルパッド | 硬度: | 65/27 ショア00 |
| 工事: | セラミック充填シリコーンエラストマー | 密度: | 2.5 g/cmの³ |
| 応用: | 新しいエネルギー充電ボックス | 熱伝導率: | 1.8W/mK |
The TIF®100-18-11U Series is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces, and the susceptibility of delicate components to mechanical damage.
| Property | Value | Test Method |
|---|---|---|
| Color | Dark Gray | Visual |
| Construction | Ceramic filled silicone elastomer | - |
| Density (g/cm³) | 2.5 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 | 0.030~0.200 0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 65 | 27 | ASTM 2240 |
| Recommend Operating Temperature (℃) | -40 to 200℃ | - |
| Breakdown Voltage (V/mm) | ≥ 5500 | ASTM D149 |
| Dielectric Constant @1Mhz | 4.5 | ASTM D150 |
| Volume Resistivity (Ohm-meter) | ≥1.0×10¹² | ASTM D257 |
| Thermal Conductivity (W/m-K) | 1.8 | ASTM D5470 ISO22007 |
| Fire rating | V-0 | UL 94 (E331100) |
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"×16" (406 mm ×406 mm)
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Packaging Details:
Lead Time:
Quantity: 5,000 pieces
Estimated Time: To be negotiated
Dongguan Ziitek Electronic Material and Technology Ltd. (ZIITEK) has been deeply involved in the field of heat conducting materials for many years, and is a high-tech enterprise integrating R&D, production and sales. Headquartered in Dongguan, with four production bases in Kunshan, Taiwan Province and Viet Nam, the global delivery capacity is stable and reliable.
Main products include thermal conductive silica pads, thermal conductive graphite sheets, thermal conductive insulation materials, PCM phase change materials, thermal conductive plastics, thermal conductive silicone grease/paste, thermal conductive gel, thermal conductive epoxy potting glue, thermal conductive silicone adhesive, silicone foam, and silicon-free thermal pads. Our core heating plate products are widely recognized by the market.
Our products have passed ISO9001 and IATF16949 certification, and meet RoHS/UL standards, and are widely used in new energy, 5G, data center, automotive electronics and other fields.
