商品の詳細:
お支払配送条件:
|
| 製品名: | AIプロセッサAIサーバー用の優れた放熱7.5Wシリコンサーマルパッド | アプリケーション: | AIプロセッサ AIサーバー |
|---|---|---|---|
| 色: | グレー | 硬度: | 20海岸00 |
| キーワード: | シリコーンの熱パッド | 密度(g/m3）: | 3.2 |
| 推奨動作温度 (°C): | -40 200℃に | 絶縁破壊電圧（V/mm）: | ≥5500 |
| 熱伝導率: | 7.5W/m-K |

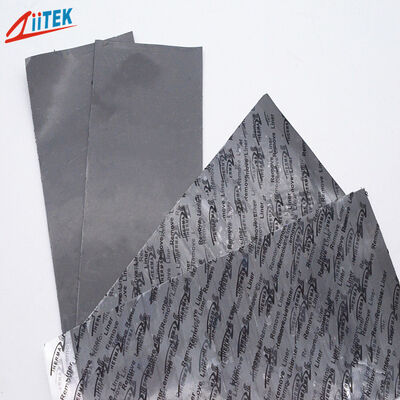

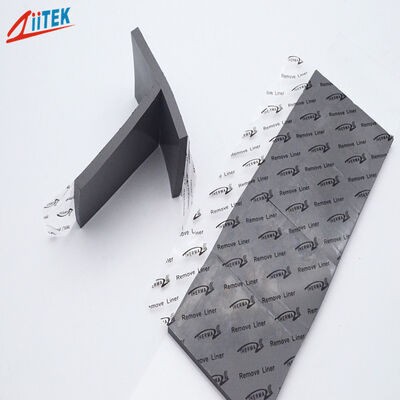

Good Heat Dissipation 7.5W Silicone Thermal Pad For AI Processors AI Servers
| Typical Properties of TIF®700PUS Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.030 | 0.040~0.200 | ASTM D374 |
| 0.50~0.75 | 1.0~5.0 | ||
| Hardness | 70 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @1MHz | 4.5 | ASTM D150 | |
| Volume Resistivity | ＞3.5 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 7.5 W/m-K | ASTM D5470 | |
| 7.5 W/m-K | ISO22007 | ||
Independent R&D team
