| Features: | Soft and Compressible for low stress applications | Product name: | Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material |
|---|---|---|---|
| Keywords: | Electric Insulation Thermal Pad | Application: | CPU, Display card ,heat sink |
| Thickness: | 0.020"(0.5mm) | Hardness: | 27±5 Shore 00 |
| Fire rating: | 94-V0 | Thermal conductivity: | 2.0W/m-K |
Electric Insulation Thermal Pad Thermally Conductive Silicon Protective Cushioning Material

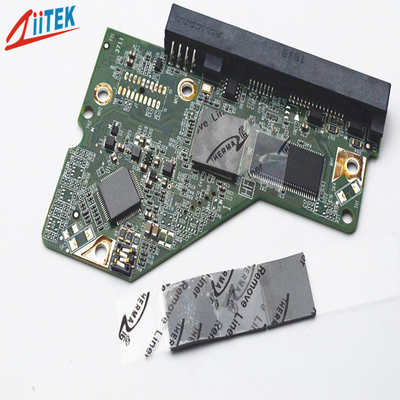

The TIF520-20-11U is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
Features:
> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Display card
> Mainboard/mother board
> Notebook
> Power supply
| Typical Properties of TIF520-20-11U Series | ||
| Color | Gray | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness | 0.020"(0.5mm) | ASTM D374 |
| Specific Gravity | 2.7g/cc | ASTM D792 |
| Hardness | 35 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.5 MHz | ASTM D150 |
| Volume Resistivity | 1.0X1012 Ohm-meter | ASTM D257 |
| Fire rating | 94-V0 | UL E331100 |
| Thermal conductivity | 2.0W/m-K | ASTM D5470 |
Product Thicknesses: 0.020-inch to 0.200-inch(0.5mm to 5.0mm)
Product Sizes: 8" x 16%(203mm x406mm)

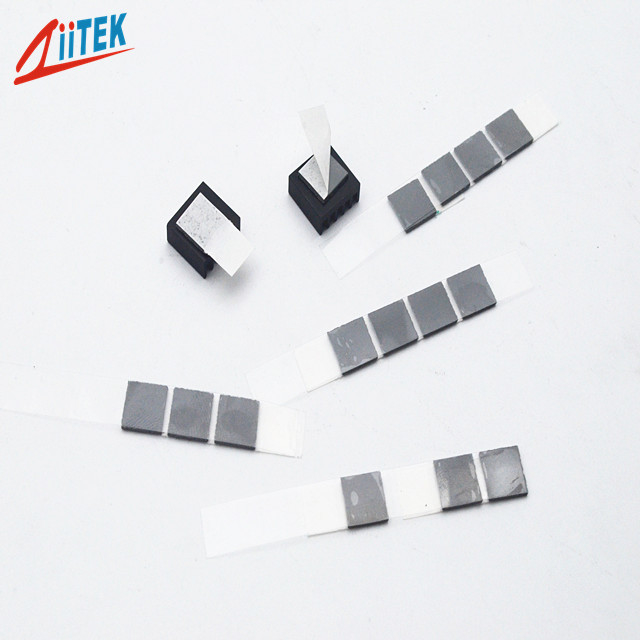

Individual die cut shapesand and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection. The storage condition is low temperature and dry, away from openfire and away from direct sunlight.For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
