商品の詳細:
お支払配送条件:
|
| 製品名: | ROHSコンプライアントプレミアムソフト1.5W/MK自動車エレクトロニクス用シリコンサーマルパッド | 構造及びCompostion: | セラミック充填シリコンエラストマー |
|---|---|---|---|
| サンプル: | サンプル無料 | 燃焼率: | UL 94 V-0 |
| 連続体は温度を使用します: | -45〜200°C | 硬度: | 27ショア00 |
| 熱伝導性（w/mk）: | 1.5W/mk | 誘電率: | 3.5 MHz |
| キーワード: | シリコーンの熱パッド | 適用する: | カーエレクトロニクス |

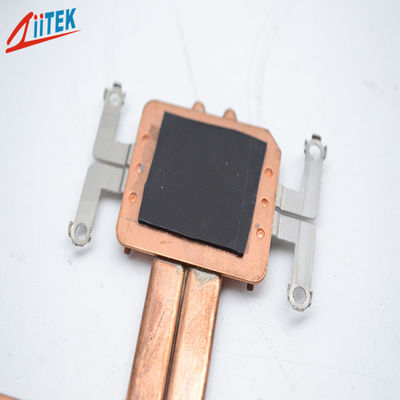

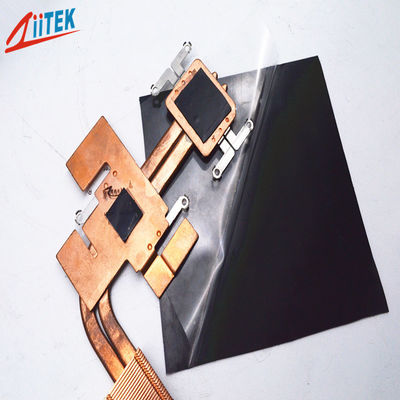

RoHS Compliant Premium Soft 1.5W/MK Silicone Thermal Pad For Automotive Electronics
The TIF®100-01U thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.
Features:
> Good thermal conductive :1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LCD TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> CPU
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> CD-Rom, DVD-Rom cooling
| Typical Properties of TIF®100-01U Series | ||
| Property | Value | Test method |
| Color | Black | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 |
| Specific Gravity | 2.2 g/cc | ASTM D792 |
| Hardness | 27 Shore 00 | ASTM 2240 |
| Operating Temp | -45 ~ 200℃ | ****** |
| Dielectric Breakdown Voltage | ≥5500 VAC | ASTM D149 |
| Dielectric Constant @1MHz | 3.5 MHz | ASTM D150 |
| Volume Resistivity | ≥1.0X1012 Ohm-cm | ASTM D257 |
| Fire rating | 94 V0 | UL E331100 |
| Outgassing (TML) | 0.35% | ASTM E595 |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Thicknesses: 0.020"(0.5mm)~0.200"(5.0mm)
Product Sizes: 8" x 16"(203mm x 406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming
Safe disposal method does not require special protection.The storage condition is low temperature anddry, away from open fire and away from direct sunlight. For detailed method, please refer to the product material safety data sheet.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
コンタクトパーソン: Dana Dai
電話番号: 18153789196
