| 製品名: | 1.5W 0.5〜5.0mm厚のサーマルパッド断熱材絶縁材料要素サーマル導電性パッド | キーワード: | 熱伝導性のパッド |
|---|---|---|---|
| 硬度: | 45ショア00 | 厚さ: | 0.020" (0.5mm) ~0.200" (5.0mm) |
| 熱伝導率: | 1.5W/m-K | 継続使用の臨時雇用者: | -45〜200°C |
| 色: | グレー | 応用: | グラフィックカードサーマルモジュール |

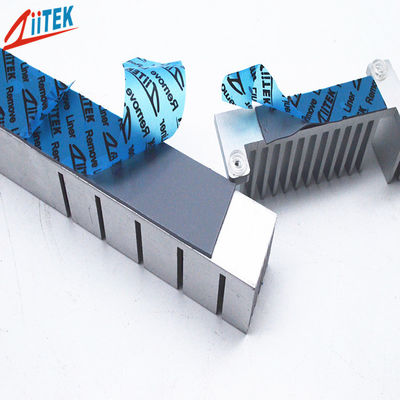

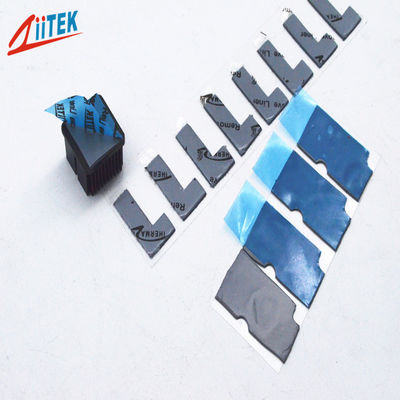

1.5W 0.5~5.0mm Thick Thermal Pad Insulator Insulation Materials Elements Thermal Conductive Pad
The TIF®100-02S Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board
> Notebook
| Typical Properties of TIF®100-02S Series | |||
| Property | Value | Test method | |
| Color | Gray | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | 0.020"(0.5mm)~0.200"(0.50mm) | ASTM D374 | |
| Specific Gravity | 2.3g/cc | ASTM D297 | |
| Hardness | 45 Shore 00 | ASTM 2240 | |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Outgassing(TML) | 0.35% | ASTM E595 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
