| 製品名: | シリコーン熱パッドブルー卸売シリコーンゴム断熱パッド熱シリコーンパッド接着剤付き Al サーバー | 色: | ピンク |
|---|---|---|---|
| キーワード: | シリコーンの熱パッド | 熱伝導率: | 10W/mK |
| 変電気変数 @1MHz: | 8.5 | 硬度: | 55 岸上 |
| 密度(g/cm3): | 3.4 | アプリケーション: | アルサーバー |

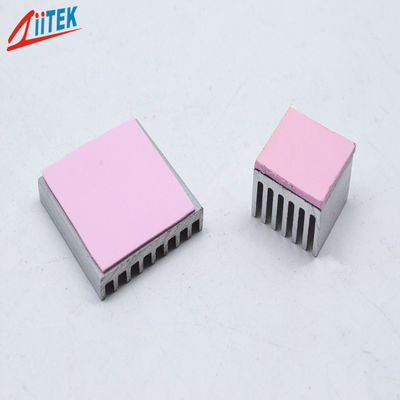

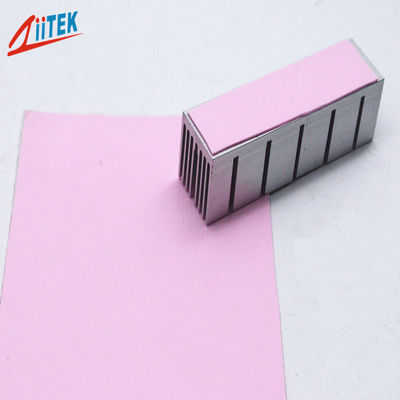

Silicone Thermal Pad Blue Wholesale Silicone Rubber Thermal Insulation Pad Thermal Silicone Pad With Adhesive For Al Servers
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
The TIF®100 10055-50 Series a well-balanced,general-purpose thermal pad. It offers excellent thermal conductivity and moderate hardness. This balanced design provides both good surface conformity and excellent ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components. It is an ideal choice for addressing medium to high power heat dissipation needs, achieving the best balance between cost and performance.
Features:
> Good thermal conductivity: 10.0 W/mK
> Good flexibility and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> Al Servers
> Semiconductor Packaging
> Low-Altitude Aircraft
> Optical Communication Products
> 5G Base Stations
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®100 10055-50 Series | |||
| Property | Value | Test method | |
| Color | Pink | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.020~0.030 (0.50~0.75) |
0.040~0.200 (1.0~5.0) | ASTM D374 |
| Hardness | 70 Shore 00 | 55 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 8.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1014 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 10.0 W/m-K | ASTM D5470 | |
|
10.0 W/m-K |
ISO22007 | ||
Product Specifications
Standard Thickness: 0.02"(0.5 mm)-0.20" (5.00 mm) with increments of 0.01 inch (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm)
Component Codes:
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
