| 製品名: | クラウドコンピューティングおよびサーバー用の低熱インピーダンス 5.0W ウルトラソフトサーマルパッド | キーワード: | ウルトラソフトサーマルパッド |
|---|---|---|---|
| 炎の評価: | UL 94 V-0 | 硬度: | 35海岸00 |
| 熱伝導率: | 5.0W/m-k | 連続使用温度: | -40 200℃に |
| 比重: | 3.4g/cc | 応用: | クラウド コンピューティングとサーバー |

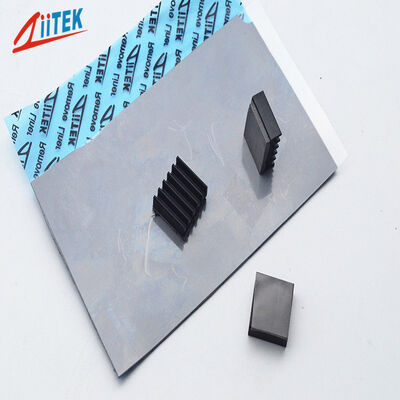

Low Thermal Impedance 5.0W Ultra Soft Thermal Pad For Cloud Computing And Servers
TIF®100-50-10E Ultra Soft Thermal Pad
Low thermal impedance

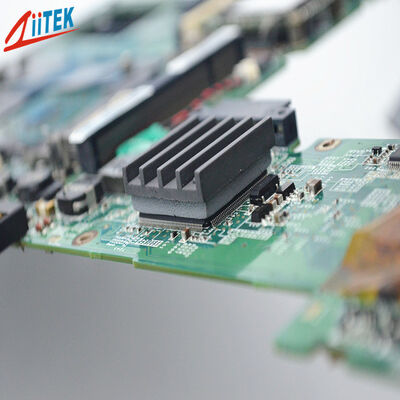

This thermal pad's ultra-soft texture can effectively fill the gaps between electronic components and heat sinks, achieving a seamless fit.
Feature
Specifically developed for network communications, cloud computing, servers, and other high-speed computing industries, TIF®100-50-10E Ultra Soft Thermal Pad have outstanding thermal conductivity (5.0 W/m·K) and achieve an ultra-soft texture of Shore OO 35/65. Only a light amount of pressure is needed to achieve a seamless fit and fill the gaps between electronic components and heat sinks. This enables quicker and more effective heat dissipation, enhancing overall cooling performance.
Application:
Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
| Typical Properties of The TIF®100-50-10E Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.5) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 6.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | |
| 5.0 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
