| Products name: | Thermal Silicone Insulation Pad For Gpu Cpu Cooling Pad 0.5MM-5.0MM With Low Thermal Resistance | Continuos Use Temp: | -40℃ to 160℃ |
|---|---|---|---|
| Density: | 2.3g/cc | Application: | Laptop Desktop GPU Computer Cooling |
| Hardness: | 27 Shore 00 | Color: | Dark Gray |
| Thermal conductivity& Compostion: | 1.0W/m-K | Thickness: | 0.020~0.20inch / 0.5~5.0mmT |
| Construction: | Ceramic filled silicone elastomer | Keywords: | Thermal Silicone Insulation Pad |

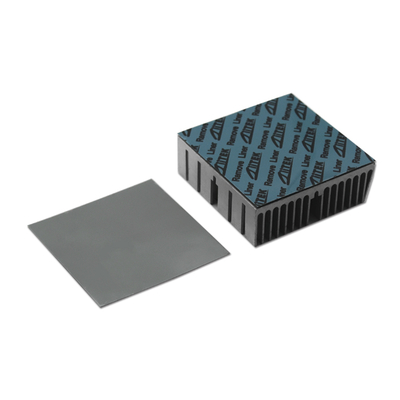

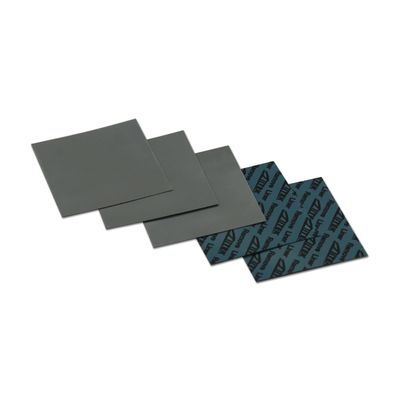

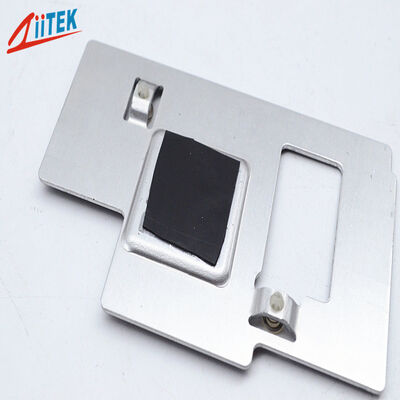

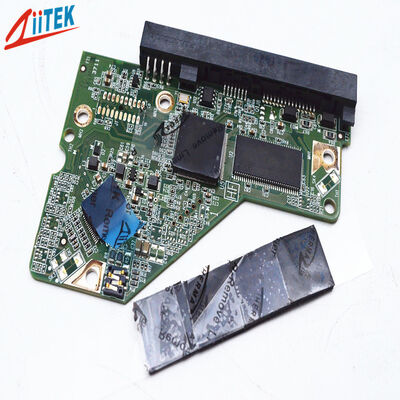

Thermal Silicone Insulation Pad For Gpu Cpu Cooling Pad 0.5MM-5.0MM With Low Thermal Resistance
Product description
TIF100-10-01U Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF100-10-01U is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features
> Excellent thermal conductivity: 1.0W/mK
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance
Applications
> Heat dissipation structure for radiators
> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps
> Telecommunication hardware
> Handheld portable electronics
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
| Typical Properties of TIF100-10-01U Series | ||
| Property | Value | Test method |
| Color | Gray | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 2.1 g/cc | ASTM D297 |
| Hardness | 27 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 160℃ | ***** |
| Dielectric Breakdown Voltage(T-1.0mm) | >5500 VAC | ASTM D149 |
| Dielectric Constant @ 1MHz | 4.5 | ASTM D150 |
| Volume Resistivity | 1.0x1012 Ohm-meter | ASTM D257 |
| Flame rating | 94-V0 | UL E331100 |
| Thermal conductivity | 1.0 W/m-K | ASTM D5470 |
| Outgassing(TML) | 0.35% | ASTM E595 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied.Please contact us for confirming.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
