| 製品名: | ダークグレーファクトリー価格医療機器用の熱導電性シリコンパッド | 厚さ: | 0.020" (0.5mm) ~0.200" (5.0mm) |
|---|---|---|---|
| 熱伝導率: | 1.5W/m-K | 硬度: | 12±5海岸00 |
| 継続使用の臨時雇用者: | -45〜200°C | キーワード: | 熱伝導性シリコンパッド |
| 色: | 濃い灰色 | 応用: | LEDライトと適切な電子機器 |

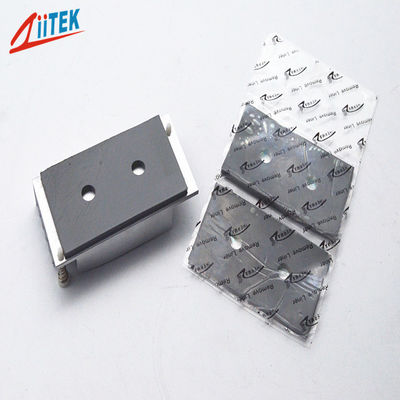

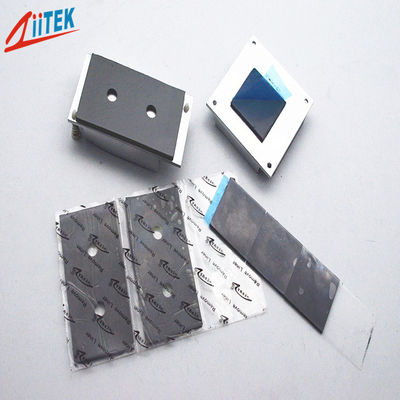

Dark Gray Factory Price Hot Selling Thermal Conductive Silicon Pad For Medical Devices
The TIF®100-01ES thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive: 1.5W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> Easy release construction
> Electrically isolating
> High durability
Applications
> Cpu heat sinking
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
| Typical Properties of TIF®100-01ES Series | ||
| Property | Value | Test method |
| Color | Dark Gray | ****** |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 |
| Specific Gravity | 1.9 g/cc | ASTM D297 |
| Hardness | 12±5 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ****** |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 |
| Dielectric Constant | 2.9 MHz | ASTM D150 |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
