商品の詳細:
|
| 製品名: | 電子デバイスの熱管理と長期動作安定性を確保する低揮発性サーマルギャップフィラーパッド | 工事: | セラミック充填シリコーンエラストマー |
|---|---|---|---|
| キーワード: | 熱ギャップフィルターのパッド | 硬度: | 65/40 ショア 00 |
| 推奨動作温度 (°C): | -40 200℃に | 耐電圧: | ≥5500 |
| サンプル: | サンプル無料 | 熱伝導性（w/mk）: | 3.0W/mK |
| 炎の評価: | UL 94 V-0 | 応用: | 電子機器 |

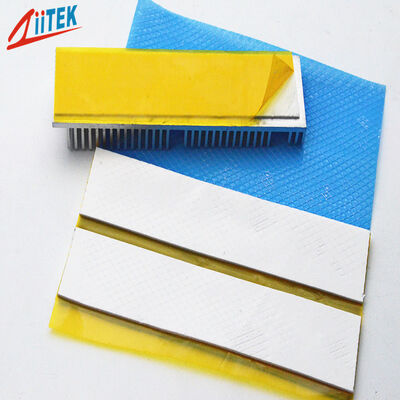

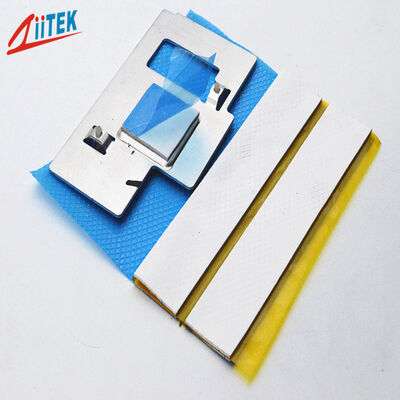

The TIF®100L 3040-06 Series is an ultra-low silicon oxygen volatilization thermal pad designed specifically for the thermal management needs of optical and high-precision electronic devices. This material balances efficient thermal conductivity with extremely low precipitation of condensable volatile substances, effectively avoiding pollution to sensitive optical components and precision circuits.The material features excellent flexibility and elasticity, enabling it to fully fill micro gaps between heating interfaces and heat dissipation structures. This significantly reduces contact thermal resistance, improves thermal conductivity efficiency, and ensures the reliability and service life of electronic components in long-term operation.
| Property | Value | Test Method |
|---|---|---|
| Color | White | Visual |
| Construction & Composition | Ceramic filled silicone elastomer | ****** |
| Density (g/cm³) | 3.0 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 | 0.030~0.200 0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 65 | 40 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** |
| Breakdown Voltage (V/mm) | ≥5500 | ASTM D149 |
| Volume Resistivity (Ohm-meter) | ＞1.0×10¹² | ASTM D257 |
| Flame rating | V-0 | UL 94 (E331100) |
| ∑ZD3-D10 (PPM) | ＜100 | GC-MS |
| Thermal conductivity (W/m-K) | 3.0 | ASTM D5470 ISO22007 |
Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm), with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm×406 mm)
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details:
Lead Time:
Quantity: 5000 pieces
Estimated Time: To be negotiated
