商品の詳細:
お支払配送条件:
|
| 製品名: | 電気製品用の複数の厚さの工場用サーマルパッドパッドを電気的に絶縁 | 硬度: | 10ショア00 |
|---|---|---|---|
| アプリケーション: | 電気製品の放熱 | キーワード: | サーマルパッド |
| 厚さ: | 0.04インチ〜0.20インチ/(1.0mm)〜5.0mm) | 色: | グレー |
| 継続使用の臨時雇用者: | -45〜200°C | サンプル: | サンプル無料 |
| 熱伝導率: | 5.0W/m-k |

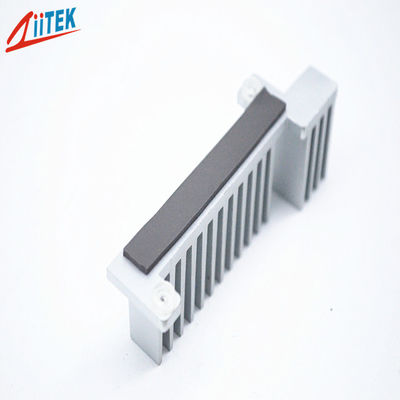

Electrically Isolating Multiple Thickness Factory Thermal Pad Pad For Electric Products
The TIF®100-50-11ES Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> RoHS complian
> UL recognized
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
> LED Flesible strip, LED bar
| Typical Properties of TIF®500-50-11ES Series | ||||
| Property | Value | Test method | ||
| Color | Gray | Visual | ||
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | ||
| Thickness range(inch/mm) |
0.02"~0.03"/ (0.50mm)~(0.75mm) |
0.04"~0.20"/ (1.0mm)~(5.0mm) |
ASTM D374 | |
| Density | 3.3g/cm³ | ASTM D792 | ||
| Hardness | 10 Shore 00 | ASTM 2240 | ||
| Continuos Use Temp | -45 to 200℃ | ****** | ||
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | ||
| Dielectric Constant | 3.8 MHz | ASTM D150 | ||
| Volume Resistivity | ＞1.0 X1012 Ohm-meter | ASTM D257 | ||
| Flame rating | 94 V0 | UL E331100 | ||
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | ||
Product Specification
Standard Thickness: 0.02"(0.50 mm)~0.20” (5.00 mm) with increments of 0.01 inch (0.25 mm).
Standard Size: 16" ×16" (406 mm×406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIFseriesis available in custom shapes and various forms.For other thicknessesormore
information, please contact us.

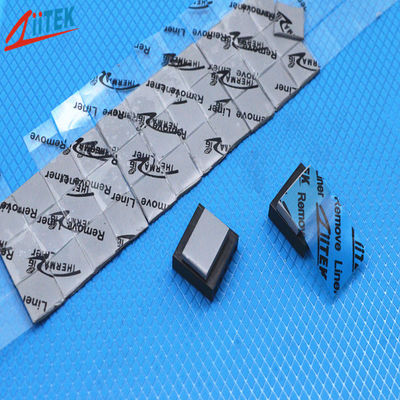

The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
