商品の詳細:
お支払配送条件:
|
| 製品名: | コンピュータ CPU/GPU 冷却用の超ソフト 6.5W 熱伝導性ギャップフィラーパッド | 連続使用温度: | -45 ℃〜200℃ |
|---|---|---|---|
| 熱伝導率と堆積物: | 6.5W/m-K | 密度: | 3.4g/cc |
| 硬度: | 60/27 ショア00 | 色: | グレー |
| 厚さ: | 0.020" (0.5mm) ~0.200" (5.0mm) | 工事: | セラミック充填シリコーンエラストマー |
| キーワード: | 超ソフトなサーマルギャップパッド | 応用: | コンピュータのCPU/GPUの冷却 |

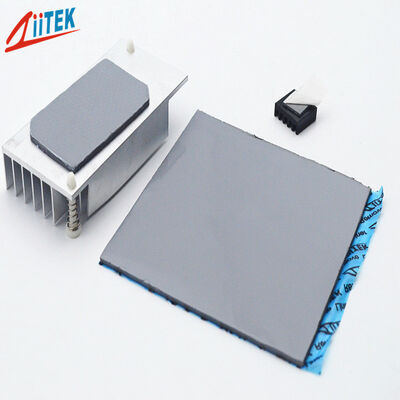

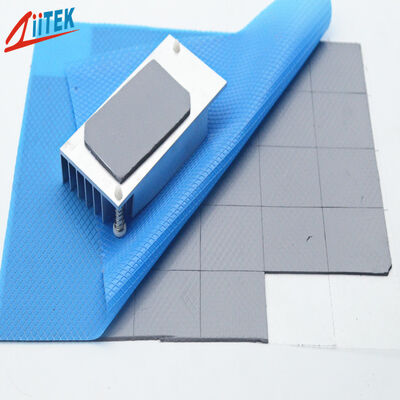

Ultra-Soft 6.5W Thermally Conductive Gap Filler Pads For Computer CPU/GPU Cooling
TIF®700NU is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces,and the susceptibility of delicate components to mechanical damage.
Features:
> Higt thermal conductivity 6.5W/mK
> Super soft and highly compliant
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance
Applications
> Power tools
> Network communication products
> Electric vehicle batteries
> Computer CPU/GPU Cooling
> New energy vehicle power systems
| Typical Properties of TIF®700NU Series | |||
| Property | Value | Test method | |
| Color | Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.4 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.020~0.030 | 0.040~0.200 | ASTM D374 |
| (0.50~0.75) | (1.0~5.0) | ||
| Hardness | 60 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 6.5 W/m-K | ASTM D5470 | |
| 6.5 W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness:0.020" (0.50 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25mm)
Standard Size:16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
