商品の詳細:
お支払配送条件:
|
| 名前: | 優れた熱伝導率8.0W半導体自動実験室装置のための熱伝導性ゲル | 建築と構成: | セラミックで満たされたシリコン材料 |
|---|---|---|---|
| 推奨動作温度(℃): | -40～200℃ | 密度（g/m3）: | 3.4 |
| 熱伝導率: | 8.0 w/mk | 炎の評価: | UL 94 V-0 |
| キーワード: | シリコン熱ジェル | 色: | グレー |
| 応用: | 半導体自動研究所機器 |

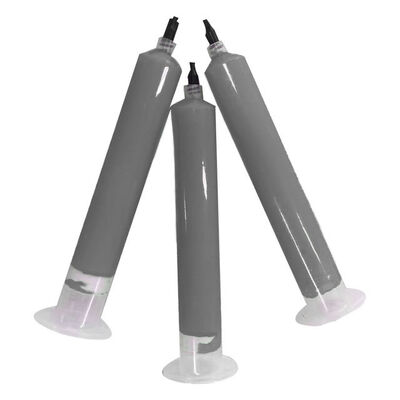

Excellent Thermal Conductivity 8.0W Thermal Conductive Gel For Semiconductor Automatic Laboratory Equipment
Company Profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Products desription
TIF®080-11 is a soft silicone gel-based gap filler pad, formulated with a special blend of fillers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, it has a higher viscosity, which efectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment.
Feature
> Excellent thermal conductivity: 8.0W/mK
> Soft, very low compression
> Low thermal inpedance
> Operate automaticly
> Proven long-term reliability
Application
> Heat-sink & frame
> LED backlight module,LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controler
> Telecom industry
> Semiconductor automatic laboratory equipment
> Motherboard chip
> Radiator
> AI Processors AI Servers
| TIF®080-11 Typical Property | ||
| Property | Value | Test method |
| Color | Gray | Visual |
| Construction & Composition | Ceramic filled silicon material | ***** |
| Flow Rate(g/min) | 40 | Ziitek Test Methbod |
| (30cc syringe/ 2.5mm or rifice/90 psi) | ||
| Density(g/cm³) | 3.4 | ASTM D792 |
| Thermal conductivity(W/mK) | 8.0 | ASTM D5470 |
| Thermal Impedance @10Psi(℃-in²/W) | 0.065 | ASTM D5470 |
| Thermal Impedance @50Psi(℃-in²/W) | 0.060 | ASTM D5470 |
| Recommended Operating temp | -40~200℃ | ***** |
| Breakdown Voltage(V/mm) | ≥4000 | ASTM D149 |
| Bond line Thickness (mm) | 0.2 | Ziitek Test Method |
| Shelf life | 12 months | **** |
| Flame Rating | V-0 | UL 94 |
Packing details
30 cc/pcs, 50cc/pcs, 300 cc/pcs ,
Custom packaging available for automation use ,Please contact us for confirming.
